STIHL batteries: battery life and charging times
Learn about the battery life per battery charge for different STIHL cordless power tools as well as the charging times for different STIHL batteries.
10.03.2024
Overview battery systems
Battery life per battery charge
STIHL AS/AI/AK
The battery life of a STIHL cordless power tool depends on the battery used, among other things. For example, a STIHL MSA 120 C-BQ cordless chainsaw with the recommended AK 20 battery lasts for up to 40 minutes, and can even achieve a battery life of up to 55 minutes when equipped with an AK 30 battery. You can find a complete list detailing the battery life for each of our STIHL cordless power tools in the tables below. All STIHL cordless power tools in the AS-System, AI-Line and AK-System are ideal for use in your own garden or in garden centres and nurseries.
STIHL AP-System
The particularly powerful STIHL cordless power tools in the AP-System impress with even more endurance and power. The battery life of these cordless power tools is particularly suitable for professional use in landscaping, garden care and tree maintenance or for municipal work. The corresponding tables show the battery life of your STIHL AP-System cordless power tool depending on the battery used.
Hedge trimmers/long-reach hedge trimmers
STIHL AS-System, AI-Line and AK-System
Battery life per battery charge¹
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specification. The actual power capacity available during operation is lower in order to increase service life.
3 Recommended cutting attachment
STIHL AP-System
Battery life per battery charge¹
| AP 100 (94 Wh battery power2) |
AP 200 (187 Wh battery power2) |
AP 300 (227 Wh battery power2) |
AP 300 S (281 Wh battery power2) |
AP 500 S (337 Wh battery power2) |
AR 1000 (626 Wh battery power2) |
AR 2000 (916 Wh battery power2) |
AR 3000 (1148 Wh battery power2) |
AR 2000 L (1,015 Wh battery power2) |
AR 3000 L (1,520 Wh battery power2) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| STIHL HSA 94 R | 54 - 42 min4 | 108 - 84 min4 | 135 - 105 min3 4 | 167 - 130 min4 | 200 - 155 min4 | 380 - 320 min4 | 550 - 450 min4 | 700 - 570 min4 | 690 - 565 min4 | 985 - 800 min4 |
| STIHL HSA 94 T | 54 - 42 min4 | 108 - 84 min4 | 135 - 105 min3 4 | 167 - 130 min4 | 200 - 155 min4 | 380 - 320 min4 | 550 - 450 min4 | 700 - 570 min4 | 690 - 565 min4 | 985 - 800 min4 |
| STIHL HLA 66 | 72 min | 144 min3 | 180 min | 223 min | 268 min | 450 min | 660 min | 800 min | 715 min | 1,040 min |
| STIHL HLA 86 | 72 min | 144 min3 | 180 min | 223 min | 268 min | 450 min | 660 min | 800 min | 715 min | 1,040 min |
| STIHL HLA 135 | 32 min | 64 min3 | 77 min | 95 min | 114 min | 215 min | 310 min | - | 345 min | 520 min |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
3 Recommended cutting attachment
4 Level 1 to Level 3/4
Garden pruners/pruning shears
STIHL AS-System, AI-Line and AK-System
Battery life per battery charge¹
| Product | AS 2 (28 Wh battery power2) | Integrated battery | AK 10 (72 Wh battery power2) | AK 20 (144 Wh battery power2) | AK 30 (180 Wh battery power2) |
|---|---|---|---|---|---|
| STIHL GTA 26 | 25 min 3 | - | - | - | - |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
3 Recommended cutting attachment
Line trimmers/brushcutters
STIHL AS-System, AI-Line and AK-System
Battery life per battery charge¹
| AS 2 (28 Wh battery power2) |
Integrated battery | AK 10 (72 Wh battery power2) |
AK 20 (144 Wh battery power2) |
AK 30 (180 Wh battery power2) |
|
|---|---|---|---|---|---|
| STIHL FSA 57 (with nylon mowing head) |
- | - | 25 min3 | 50 min | 60 min |
| STIHL FSA 60 R (with nylon mowing head) |
- | - | 13 min | 30 min3 | 38 min |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
3 Recommended cutting attachment
STIHL AP-System
Battery life per battery charge¹:
| AP 100 (94 Wh battery power2) |
AP 200 (187 Wh battery power2) |
AP 300 (227 Wh battery power2) |
AP 300 S (281 Wh battery power2) |
AP 500 S (337 Wh battery power2) |
AR 1000 (626 Wh battery power2) |
AR 2000 (916 Wh battery power2) |
AR 3000 (1148 Wh battery power2) |
AR 2000 L (1,015 Wh battery power2) |
AR 3000 L (1,520 Wh battery power2) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| STIHL FSA 86 R (with nylon mowing head/with PolyCut) |
17/30 min | 35/60 min3 | 42/70 min | 52/85 min | 62/102 min | 115/185 min | 170/270 min | - | 185/300 min | 280/450 min |
| STIHL FSA 90 (with grass cutting blade) |
18 min | 36 min | 45 min3 | 56 min | 67 min | 120 min | 180 min | 220 min | 195 min | 290 min |
| STIHL FSA 135 (with grass cutting blade) |
25 - 16 min4 | 50 - 30 min4 | 70 - 40 min4 | 100 - 50 min3 4 | 120 - 60 min4 | 200 - 100 min4 | 300 - 150 min3 4 | 420 - 215 min4 | 310 - 160 min4 | 430 - 240 min4 |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
3 Recommended cutting attachment
4 Level 1 to Level 3/4
Chainsaws
STIHL AS-System, AI-Line and AK-System
Battery life per battery charge¹
| AS 2 (28 Wh battery power2) |
Integrated battery | AK 10 (72 Wh battery power2) |
AK 20 (144 Wh battery power2) |
AK 30 (180 Wh battery power2) |
|
|---|---|---|---|---|---|
| STIHL MSA 60 |
- | - | 18 min4 | 40 min4 | 55 min3 |
| STIHL MSA 70 |
- | - | 18 min4 | 40 min4 | 45 min3 |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
3 Recommended cutting attachment
4 Reduced tool performance
STIHL AP-System
Battery life per battery charge¹
| AP 100 (94 Wh battery power2) |
AP 200 (187 Wh battery power2) |
AP 300 (227 Wh battery power2) |
AP 300 S (281 Wh battery power2) |
AP 500 S (337 Wh battery power2) |
AR 1000 (626 Wh battery power2) |
AR 2000 (916 Wh battery power2) |
AR 3000 (1148 Wh battery power2) |
AR 2000 L (1,015 Wh battery power2) |
AR 3000 L (1,520 Wh battery power2) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| STIHL MSA 200 C-B | - | 35 min4 | 40 min3 | 50 min | 60 min | 110 min | 160 min | 200 min | 175 min | 260 min |
| STIHL MSA 220 C-B | - | 32 min4 | 35 min4 | 37 min3 | 44 min | 110 min | 160 min | 200 min | 201 min | 281 min |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
3 Recommended cutting attachment
4 Reduced tool performance
leaf blowers/blowers/vacuum shredders
STIHL AS-System, AI-Line and AK-System
Battery life per battery charge (up to ... min)¹:
| AS 2 (28 Wh battery power2) |
Integrated battery | AK 10 (72 Wh battery power2) |
AK 20 (144 Wh battery power2) |
AK 30 (180 Wh battery power2) |
|
|---|---|---|---|---|---|
| STIHL BGA 45 | - | 10 min3 | - | - | - |
| STIHL BGA 57 | - | - | 10 min | 22 min3 | 27 min |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
3 Recommended cutting attachment
STIHL AP-System
Battery life per battery charge¹
| AP 100 (94 Wh battery power2) |
AP 200 (187 Wh battery power2) |
AP 300 (227 Wh battery power2) |
AP 300 S (281 Wh battery power2) |
AP 500 S (337 Wh battery power2) |
AR 1000 (626 Wh battery power2) |
AR 2000 (916 Wh battery power2) |
AR 3000 (1148 Wh battery power2) |
AR 2000 L (1,015 Wh battery power2) |
AR 3000 L (1,520 Wh battery power2) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| STIHL BGA 86 | 11 min | 17 min | 21 min3 | 26 min | 31 min | 57 min | 84 min | 105 min | 90 min | 140 min |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
3 Recommended cutting attachment
4 Level 1 - Level 3/Boost
Lawn mowers
STIHL AS-System, AI-Line and AK-System
Maximum battery ranges¹
| AS 2 (28 Wh battery power2) |
Integrated battery | AK 10 (72 Wh battery power2) |
AK 20 (144 Wh battery power2) |
AK 30 (180 Wh battery power2) |
|
|---|---|---|---|---|---|
| STIHL RMA 235 | - | - | 150 m² | 300 m² | 400 m² |
| STIHL RMA 339/RMA 339 C | - | - | 120 m² | 250 m² | 330 m² |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
STIHL AP-System
Maximum battery ranges¹
| AP 100 (94 Wh battery power2) |
AP 200 (187 Wh battery power2) |
AP 300 (227 Wh battery power2) |
AP 300 S (281 Wh battery power2) |
AP 500 S (337 Wh battery power2) |
AR 1000 (626 Wh battery power2) |
AR 2000 (916 Wh battery power2) |
AR 3000 (1148 Wh battery power2) |
AR 2000 L (1,015 Wh battery power2) |
AR 3000 L (1,520 Wh battery power2) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| STIHL RMA 443 STIHL RMA 443 C |
180 m24 | 360 m2 3 | 440 m2 | 540 m2 ² | 650 m2 ² | - | - | - | - | - |
| STIHL RMA 510 |
- | 230 m2 | 280 m2 3 | 336 m² | - | - | - | - | - | - |
| STIHL RMA 510 V | - | 196 m2 | 238 m2 | 286 m2 3 | 400 m2 | |||||
| STIHL RMA 765 V |
- | - | 350 m² | 400 m² | 480 m² | - | - | - | 2050 m² | 3100 m23 |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
3 Recommended cutting attachment
4 Reduced tool performance
Pole pruner
STIHL AP-System
Battery life per battery charge¹:
| AP 100 (94 Wh battery power2) |
AP 200 (187 Wh battery power2) |
AP 300 (227 Wh battery power2) |
AP 300 S (281 Wh battery power2) |
AP 500 S (337 Wh battery power2) |
AR 1000 (626 Wh battery power2) |
AR 2000 (916 Wh battery power2) |
AR 3000 (1148 Wh battery power2) |
AR 2000 L (1,015 Wh battery power2) |
AR 3000 L (1,520 Wh battery power2) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| STIHL HTA 66 |
18 min4 | 42 min3 | 55 min | 68 min | 82 min | 125 min | 175 min | 210 min | 195 min | 300 min |
| STIHL HTA 86 | 18 min4 | 42 min3 | 55 min | 68 min | 82 min | 125 min | 180 min | 210 min | 195 min | 300 min |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
3 Recommended cutting attachment
4 Reduced tool performance
Sweeping machines
STIHL AP-System
Maximum battery life per battery charge¹
| AP 100 (94 Wh battery power2) | AP 200 (187 Wh battery power2) | AP 300 (227 Wh battery power2) | AP 300 S (281 Wh battery power2) | AP 500 S (337 Wh battery power2) | AR 1000 (626 Wh battery power2) | AR 2000 (916 Wh battery power2) | AR 3000 (1148 Wh battery power2) | AR 2000 L (1,015 Wh battery power2) | AR 3000 L (1,520 Wh battery power2) | |
|---|---|---|---|---|---|---|---|---|---|---|
| STIHL KGA 770 | 84 min3 | 168 min3 | 210 min | 260 min | 312 min | - | - | - | - | - |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specification. The actual power capacity available during operation is lower in order to increase service life.
3 Recommended cutting attachment

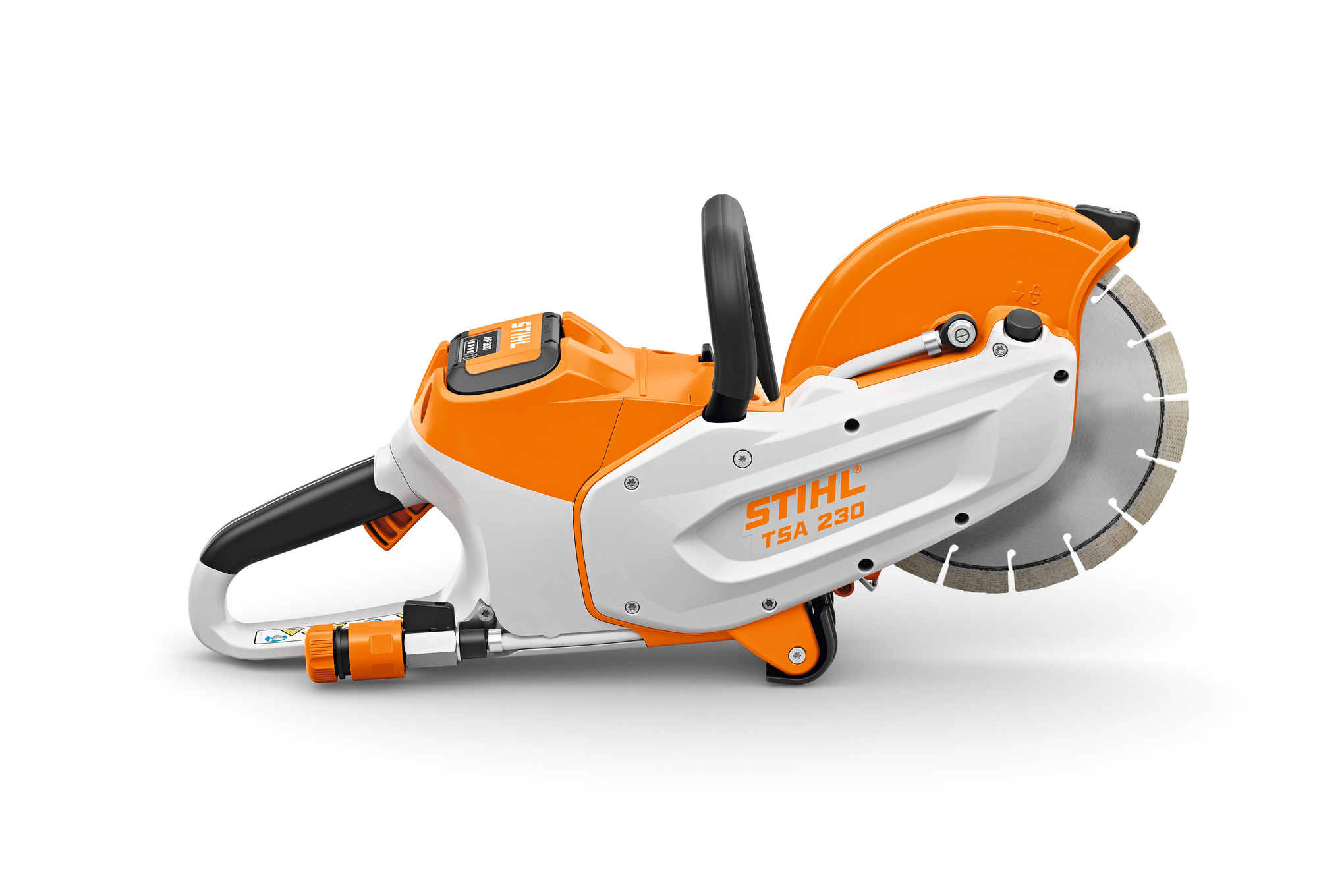

Cut-off machines
STIHL AP-System
Maximum battery life per battery charge¹
| AP 100 (94 Wh battery power2) | AP 200 (187 Wh battery power2) | AP 300 (227 Wh battery power2) | AP 300 S (281 Wh battery power2) | AP 500 S (337 Wh battery power2) | AR 1000 (626 Wh battery power2) | AR 2000 (916 Wh battery power2) | AR 3000 (1148 Wh battery power2) | AR 2000 L (1,015 Wh battery power2) | AR 3000 L (1,520 Wh battery power2) | |
|---|---|---|---|---|---|---|---|---|---|---|
| STIHL TSA 230 | 7 min | 14 min | 18 min3 | 22 min | 26 min | 50 min | 75 min | 95 min | 80 min | 125 min |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specification. The actual power capacity available during operation is lower in order to increase service life.
3 Recommended cutting attachment
| Product | AS 2 (28 Wh battery power2) | Integrated battery | AK 10 (72 Wh battery power2) | AK 20 (144 Wh battery power2) | AK 30 (180 Wh battery power2) |
|---|---|---|---|---|---|
| STIHL SEA 20 | 14 min3 | - | - | - | - |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specification. The actual power capacity available during operation is lower in order to increase service life.
3 Recommended cutting attachment
Sprayers
STIHL AP-System
Maximum battery life per battery charge¹
| AP 100 (94 Wh battery power2) | AP 200 (187 Wh battery power2) | AP 300 (227 Wh battery power2) | AP 300 S (281 Wh battery power2) | AP 500 S (337 Wh battery power2) | AR 2000 L (1,015 Wh battery power2) | AR 3000 L (1,520 Wh battery power2) | |
|---|---|---|---|---|---|---|---|
| STIHL SGA 85 | 510 min4 | 1000 min3 | - | - | - | - | - |
1 The stated battery life per charge and area specifications are approximate values and may vary depending on how the tool is used and what is being cut.
2 Energy content according to cell manufacturer specifications. The actual power capacity available during operation is lower in order to increase service life.
3 Recommended cutting attachment
4 Reduced tool performance

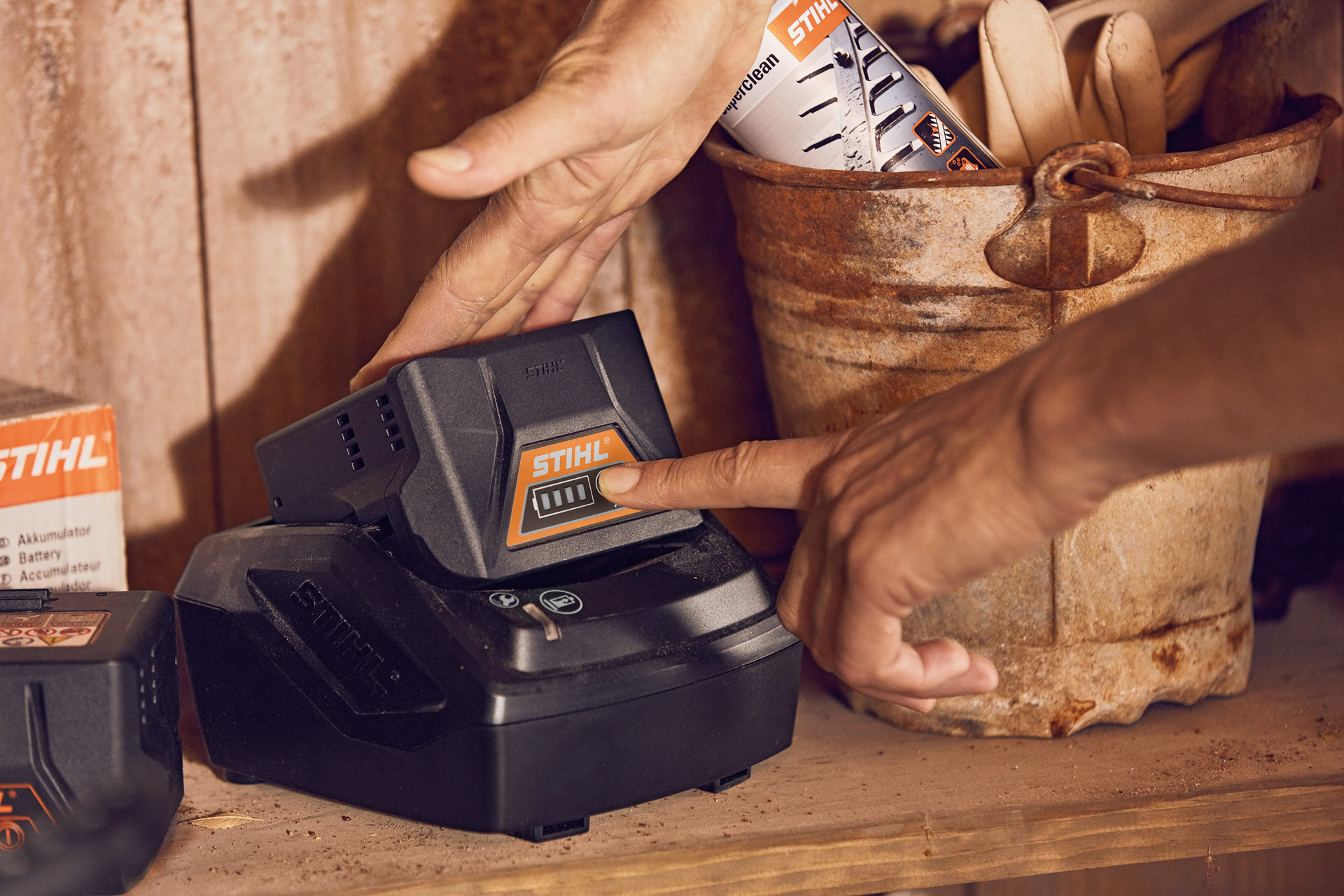

Battery charging times
Battery charging times in minutes
The charging times of batteries are not determined solely by their capacity – the charger also has an impact on battery charging time. For example, the charging time for the STIHL AK 10 battery with the AL 101 charger is 95 minutes, while with the AL 300 charger the battery is fully charged in just 45 minutes. The table below shows which charger suits which STIHL battery and indicates the charging time required to reach a battery level of 80% and 100%.
| AL 1 | LK 45 | AL 100 | AL 101 | AL 300 | AL 500 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 80% | 100% | 80% | 100% | 80% | 100% | 80% | 100% | 80% | 100% | 80% | 100% | |
| AS 2 | 55 min | 70 min | - | - | - | - | - | - | - | - | - | - |
| BGA 45 | - | - | 210 min | 300 min | - | - | - | - | - | - | - | - |
| HSA 45 | - | - | 145 min | 210 min | - | - | - | - | - | - | - | - |
| FSA 45 | - | - | 145 min | 210 min | - | - | - | - | - | - | - | - |
| AK 10 | - | - | - | - | - | - | 70 min | 95 min | 30 min | 45 min | 30 min | 45 min |
| AK 20 | - | - | - | - | - | - | 135 min | 180 min | 35 min | 55 min | 35 min | 55 min |
| AK 30 | - | - | - | - | - | - | 160 min | 205 min | 35 min | 60 min | 35 min | 60 min |
| AP 100 | - | - | - | - | - | - | 75 min | 100 min | 30 min | 45 min | 30 min | 45 min |
| AP 200 | - | - | - | - | - | - | 150 min | 200 min | 40 min | 55 min | 30 min | 45 min |
| AP 300 | - | - | - | - | - | - | 190 min | 250 min | 45 min | 60 min | 25 min | 35 min |
| AP 300 S | - | - | - | - | - | - | 230 min | 300 min | 55 min | 70 min | 30 min | 45 min |
| AR 1000 | - | - | - | - | - | - | - | - | 130 min | 160 min | 90 min | 120 min |
| AR 2000 | - | - | - | - | - | - | - | - | 190 min | 215 min | 100 min | 130 min |
| AR 3000 | - | - | - | - | - | - | - | - | 220 min | 265 min | 120 min | 160 min |
| AR 2000 L | - | - | - | - | - | - | - | - | 210 min | 270 min | 110 min | 150 min |
| AR 3000 L | - | - | - | - | - | - | - | - | 310 min | 400 min | 170 min | 220 min |
